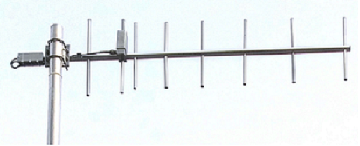

SXY(A)-80025
SXY(A)-80025
The Directional Active Yagi Antenna is useful for surveillance and monitoring of GSM bands. The antenna is rugged and waterproof to work in all weather conditions as an active high...
Model
SXY(A)-80025
Frequency
900/1800 MHz
Gain
25 Gain
The Directional Active Yagi Antenna is useful for surveillance and monitoring of GSM bands. The antenna is rugged and waterproof to work in all weather conditions as an active high gain outdoor antenna.
Design & Construction:
The Directional Active Yagi Antenna is supplied with Low Noise Amplifier (LNA) forming an integral part of the yagi antenna. The power to the LNA is supplied using a 220 Volt AC/ 12 Volt DC power adaptor supplied with antenna with suitable feeder and power cable free of cost
Technical Specifications
SXY(A)-80025
| ELECTRICAL DATA | |
|---|---|
| Frequency Range (MHz) | 900/1800 |
| Gain (dBi) | 25 |
| Bandwidth (MHz) | Covers one GSM Band |
| Polarization | V or H |
| Input Impedance (Ohms) | 50 |
| Radiation Pattern | Directional |
| Beamwidth 3db (Degrees) | 50 (Horizontal) 40 (Vertical) |
| Front to Back Ratio | 18 |
| VSWR | 1.5 : 1 |
| RF Power Handling Capacity (Watts) | 220 |
| Input Termination | N-Female |
| Lightning Protection | Direct Ground |
| MECHANICAL DATA | |
|---|---|
| Mounting HW | Stainless Steel |
| Weight (Kgs) | 2.5 |
| Wind Rating (KMPH) | 200 |
| Overall Length (Meters) | 1.4 |
| Shipping Length (Meters) | 1.5 |
| Support Boom - Material | Aluminum |
| Support Boom - Cross Section | Round |
| Support Boom - O.D. (mm) | 25.4 |
| Elements - Material | Aluminum |
| Elements - Cross Section | Round |
| Elements - O.D. (mm) | 12.7 |
| Maximum Mount Pipe Diameter - mm (Inches) | 50.8 (2) |
Disclaimer
1. All features, functionality and product specifications are subject to change without prior notice
2. Customized in-band and out-of-band versions are available on request
