NATO and National Stock Number (NSN): 5985720481946General:This log periodic dipole antenna, is designed to provide wideband directional signals from VHF through to the UHF bands.O...
Model
SLP-901100
Frequency
90 - 1100 MHz
Gain
7 dBi.
NATO and National Stock Number (NSN): 5985720481946
General:

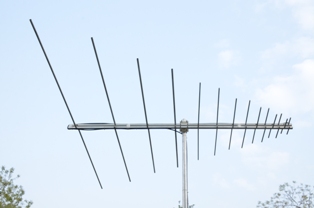

This log periodic dipole antenna, is designed to provide wideband directional signals from VHF through to the UHF bands.
Output is provided via one 50 Ohms coaxial in the frequency range: 90-1100 MHz. This log periodic dipole antenna system is suitable for Wide-Band operations, including Monitoring.
All the screws, nuts and bolts of log periodic dipole antenna are made of stainless steel.
The antenna is designed to operate at D.C. ground..
Technical Specifications
SLP-901100
| ELECTRICAL DATA | |
|---|---|
| Frequency Range (MHz) | 90 - 1100 |
| Gain (dBi) | 7 dBi. |
| Bandwidth (MHz) | 1010 |
| Polarization | V or H |
| Input Impedance (Ohms) | 50 |
| Radiation Pattern | Directional |
| Beamwidth 3db (Degrees) | 60 |
| Front to Back Ratio | 12 dB. |
| VSWR | 1:3 |
| RF Power Handling Capacity (Watts) | 150 |
| Input Termination | N-Female |
| Lightning Protection | DC Ground |
| MECHANICAL DATA | |
|---|---|
| Materials | All Aluminum |
| Mounting HW | Stainless Steel |
| Weight Approx (Kgs) | 14 |
| Wind Rating (KMPH) | 180 |
| Overall Length (Meters) | 2 |
| Shipping Length (Meters) | 2.1 |
| Support Boom - Material - Cross Section - O.D. (mm) | Aluminum Square 25 |
| Maximum Mount Pipe Diameter - mm (Inches) | 51 |
Disclaimer
1. All features, functionality and product specifications are subject to change without prior notice
2. Customized in-band and out-of-band versions are available on request
