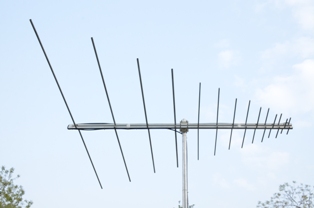

General:This log periodic dipole antenna, is designed to provide wideband directional signals from VHF through to the UHF bands.Output is provided via one 50 Ohms coaxial in the fr...
Model
SLP-88108
Frequency
88-108 MHz
Gain
7 dBi.
General:
This log periodic dipole antenna, is designed to provide wideband directional signals from VHF through to the UHF bands.
Output is provided via one 50 Ohms coaxial in the frequency range: 88-108 MHz. This log periodic dipole antenna system is suitable for Wide-Band operations, including Monitoring.
All the screws, nuts and bolts of log periodic dipole antenna are made of stainless steel.
The antenna is designed to operate at D.C. ground.
Technical Specifications
SLP-88108
| ELECTRICAL DATA | |
|---|---|
| Frequency Range (MHz) | 88-108 |
| Gain (dBi) | 7 dBi. |
| Bandwidth (MHz) | 20 |
| Polarization | V or H |
| Input Impedance (Ohms) | 50 |
| (75 Ohms Optional) | |
| Radiation Pattern | Directional |
| Beamwidth Hpp (Degrees) | 50 |
| Front to Back Ratio | 18 |
| VSWR | 1:1.5 |
| RF Power Handling Capacity (Watts) | 500 |
| Input Termination | N-Female |
| Lightning Protection | Direct Ground |
| MECHANICAL DATA | |
|---|---|
| Materials | All Aluminum |
| Mounting HW | Stainless Steel |
| Weight (Kgs) | 8 |
| Wind Rating (KMPH) | 200 |
| Overall Length (Meters) | 2.2 |
| Support Boom - Material - Cross Section - O.D. (mm) | Aluminum Square 25 |
| Elements - Material - Cross Section - O.D. (mm) | Aluminum Round -Tube 12 |
| Maximum Mount Pipe Diameter - mm (Inches) | 52 (2) |
Disclaimer
1. All features, functionality and product specifications are subject to change without prior notice
2. Customized in-band and out-of-band versions are available on request
