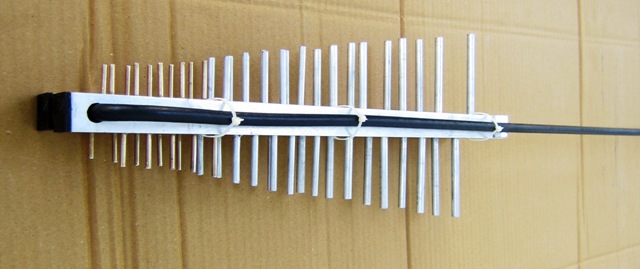

SLP-7003000
SLP-7003000
General:This log periodic dipole antenna, enclosed in a fiberglass radome is highly suitable for SNOW BOUND AREAS designed to provide wideband use as a directional antenna from GSM...
Model
SLP-7003000
Frequency
700-3000 MHz
Gain
9 dBi.
General:
This log periodic dipole antenna, enclosed in a fiberglass radome is highly suitable for SNOW BOUND AREAS designed to provide wideband use as a directional antenna from GSM 700 MHz., 900 MHz., 1800 MHz. and 2100 MHz.
Output is provided via one 50 Ohms coaxial in the frequency range: 700-3000 MHz. This log periodic dipole antenna system is suitable for Wide-Band operations, including Monitoring.
All the screws, nuts and bolts of log periodic dipole antenna are made of stainless steel.
The antenna is designed to operate at D.C. ground.
Technical Specifications
SLP-7003000
| ELECTRICAL DATA | |
|---|---|
| Frequency Range (MHz) | 700-3000 |
| Gain (dBi) | 9 dBi. |
| Bandwidth (MHz) | 2300 |
| Polarization | V or H |
| Input Impedance (Ohms) | 50 |
| Radiation Pattern | Directional |
| Beamwidth 3db (Degrees) | 50 |
| VSWR | 1:2 |
| RF Power Handling Capacity (Watts) | 150 Watts |
| Input Termination | N-Female |
| Lightning Protection | Direct Ground |
| MECHANICAL DATA | |
|---|---|
| Mounting HW | Stainless Steel |
| Weight (Kgs) | 5 |
| Wind Rating (KMPH) | 160 |
| Overall Length (Meters) | 1.5 |
| Shipping Length (Meters) | 1.75 |
| Support Boom - Material - Cross Section - O.D. (mm) | Aluminum Square 25 |
| Elements - Material - Cross Section - O.D. (mm) | Aluminum Round Tube |
| Maximum Mount Pipe Diameter - mm (Inches) | 51 (2) |
Disclaimer
1. All features, functionality and product specifications are subject to change without prior notice
2. Customized in-band and out-of-band versions are available on request
