SLP-50500
SLP-50500

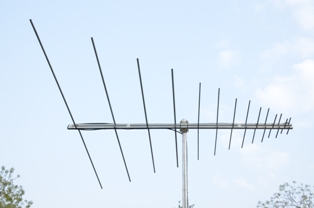

General:This log periodic dipole antenna, is designed to provide wideband directional signals from VHF through to the UHF bands.Output is provided via one 50 Ohms coaxial in the fr...
Model
SLP-50500
Frequency
50-500 MHz
Gain
7 dBi.
General:
This log periodic dipole antenna, is designed to provide wideband directional signals from VHF through to the UHF bands.
Output is provided via one 50 Ohms coaxial in the frequency range: 50-500 MHz. This log periodic dipole antenna system is suitable for Wide-Band operations, including Monitoring.
All the screws, nuts and bolts of log periodic dipole antenna are made of stainless steel.
The antenna is designed to operate at D.C. ground.
Technical Specifications
SLP-50500
| ELECTRICAL DATA | |
|---|---|
| Frequency Range (MHz) | 50-500 |
| Gain (dBi) | 7 dBi. |
| Bandwidth (MHz) | 450 |
| Polarization | Vertical or Horizontal |
| Input Impedance (Ohms) | 50 |
| Radiation Pattern | Directional |
| Beamwidth 3db (Degrees) | 50 |
| Front to Back Ratio | 20 |
| VSWR | 1:2.5 |
| RF Power Handling Capacity (Watts) | 500 |
| Input Termination | N-Female |
| Lightning Protection | Direct Ground |
| MECHANICAL DATA | |
|---|---|
| Materials | Aluminum |
| Mounting HW | Stainless Steel |
| Weight (Kgs) | 18 |
| Wind Rating (KMPH) | 170 |
| Overall Length (Meters) | 2.8 |
| Support Boom - Material - Cross Section - O.D. (mm) | Aluminum Square 25 |
| Maximum Mount Pipe Diameter - mm (Inches) | 52 |
Disclaimer
1. All features, functionality and product specifications are subject to change without prior notice
2. Customized in-band and out-of-band versions are available on request
