SLP-5015
SLP-5015

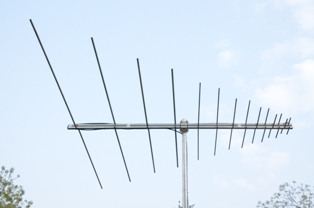

General:This log periodic dipole antenna, is designed to provide wideband directional signals from VHF through to the UHF bands.Output is provided via one 50 Ohms coaxial in the fr...
Model
SLP-5015
Frequency
50-1500 MHz
Gain
7 dBi.
General:
This log periodic dipole antenna, is designed to provide wideband directional signals from VHF through to the UHF bands.
Output is provided via one 50 Ohms coaxial in the frequency range: 50-1500 MHz. This log periodic dipole antenna system is suitable for Wide-Band operations, including Monitoring.
All the screws, nuts and bolts of log periodic dipole antenna are made of stainless steel.
The antenna is designed to operate at D.C. ground.
Technical Specifications
SLP-5015
| ELECTRICAL DATA | |
|---|---|
| Frequency Range (MHz) | 50-1500 |
| Gain (dBi) | 7 dBi. |
| Bandwidth (MHz) | 1450 |
| Polarization | V or H |
| Input Impedance (Ohms) | 50 |
| Radiation Pattern | Directional |
| Beamwidth 3db (Degrees) | 50 |
| Front to Back Ratio | 12 dB |
| VSWR | 1:2.5 |
| RF Power Handling Capacity (Watts) | 150 Watts |
| Input Termination | N-Female |
| Lightning Protection | Direct Ground |
| MECHANICAL DATA | |
|---|---|
| Mounting HW | Stainless Steel |
| Weight Approx (Kgs) | 15 |
| Wind Rating (KMPH) | 150 |
| Overall Length (Meters) | 3.2 |
| Shipping Length (Meters) | 3.3 |
| Support Boom - Material - Cross Section - O.D. (mm) | Aluminum Square 25 |
| Mounting Clamps Position | Center |
| Maximum Mount Pipe Diameter - mm (Inches) | 51 (2) |
| Radiating Elements - Material - Cross Section | Aluminum Round-Tube |
Disclaimer
1. All features, functionality and product specifications are subject to change without prior notice
2. Customized in-band and out-of-band versions are available on request
