General:This log periodic dipole antenna, is designed to provide wideband directional signals from 400 to 1500MHz.Output is provided via one 50 Ohms coaxial in the frequency range:...
Model
SLP-40015
Frequency
400-1500 MHz
Gain
7 dBi.
General:

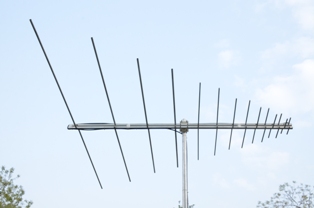

This log periodic dipole antenna, is designed to provide wideband directional signals from 400 to 1500MHz.
Output is provided via one 50 Ohms coaxial in the frequency range: 400-1500 MHz. This log periodic dipole antenna system is suitable for Wide-Band operations, including Monitoring.
All the screws, nuts and bolts of log periodic dipole antenna are made of stainless steel.
The antenna is designed to operate at D.C. ground.
Technical Specifications
SLP-40015
| ELECTRICAL DATA | |
|---|---|
| Frequency Range (MHz) | 400-1500 |
| Gain (dBi) | 7 dBi. |
| Bandwidth (MHz) | 1100 |
| Polarization | Vertical or Horizontal |
| Input Impedance (Ohms) | 50 |
| Radiation Pattern | Directional |
| Beamwidth 3db (Degrees) | 50 (Horizontal) 40 (Vertical) |
| Front to Back Ratio | 16 |
| VSWR | 1:2 |
| RF Power Handling Capacity (Watts) | 150 |
| Input Termination | N-Female |
| Lightning Protection | Direct Ground |
| MECHANICAL DATA | |
|---|---|
| Materials | All Aluminum |
| Mounting HW | Stainless Steel |
| Weight (Kgs) | 4 |
| Wind Rating (KMPH) | 180 |
| Overall Length (Meters) | 1 |
| Shipping Length (Meters) | 1.1 |
| Support Boom - Material - Cross Section - O.D. (mm) | Aluminum Square 19 |
| Elements - Material - Cross Section - O.D. (mm) | Aluminum Round 10~6 |
| Width (Meters) | 0.38 |
