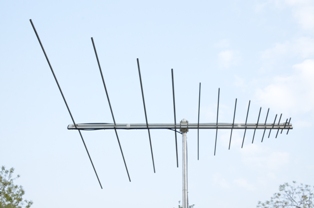

SLP-302000
SLP-302000
General:This log periodic dipole antenna is designed to provide wideband directional signals from VHF through to the UHF bands.Output is provided via one 50 Ohms coaxial in the fre...
Model
SLP-302000
Frequency
30-2000 MHz
Gain
7 dBi.
General:
This log periodic dipole antenna is designed to provide wideband directional signals from VHF through to the UHF bands.
Output is provided via one 50 Ohms coaxial in the frequency range: 30-2000 MHz. This log periodic dipole antenna system is suitable for Wide-Band operations, including Monitoring.
All the screws, nuts and bolts of log periodic dipole antenna are made of stainless steel.
The antenna is designed to operate at D.C. ground.
Technical Specifications
SLP-302000
| ELECTRICAL DATA | |
|---|---|
| Frequency Range (MHz) | 30-2000 |
| Gain (dBi) | 7 dBi. |
| Bandwidth (MHz) | 1970 |
| Polarization | Vertical or Horizontal |
| Input Impedance (Ohms) | 50 |
| Radiation Pattern | Directional |
| Front to Back Ratio | 20 |
| VSWR | 1:1.8 |
| RF Power Handling Capacity (Watts) | 250 |
| Input Termination | N-Female |
| Lightning Protection | Direct Ground |
| MECHANICAL DATA | |
|---|---|
| Materials | Aluminium |
| Mounting HW | Clamp: Galvanized Iron Nut/Bolt: Stainless Steel |
| Wind Rating (KMPH) | 170 |
| Support Pipe Material | Aluminium |
| Overall Length of Each Boom - Meters | 6.20 approx. |
| Overall Weight Antenna with Mounting - Kg. | 35 approx. |
Disclaimer
1. All features, functionality and product specifications are subject to change without prior notice
2. Customized in-band and out-of-band versions are available on request
