SXG-750
SXG-750

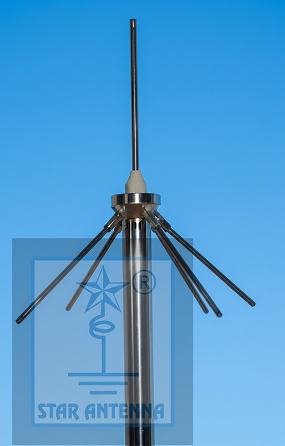

This Ground Plane Antenna is rugged all weather model, uses high class chrome plated Brass and does not require any field tuning or adjustments. The antenna when packed comes with...
Model
SXG-750
Frequency
66-88 MHz
Gain
Unity
This Ground Plane Antenna is rugged all weather model, uses high class chrome plated Brass and does not require any field tuning or adjustments. The antenna when packed comes with ground radials removed from the antenna body for ease of packing and transportation. The compact size of antenna allows easy handling and specially designed mounting hardware result in fast installation.
Design & Construction:
The all Brass antenna prevents formation of “Signal Cells”, thereby eliminating intermodulation with in the antenna. It is specially designed for Omni directional requirements, broadband for base station. Antenna termination and feed cable lie enclosed inside the mounting pipe for complete weather protection.
Technical Specifications
SXG-750
| ELECTRICAL DATA | |
|---|---|
| Frequency Range (MHz) | 66-88 |
| Gain (dBi) | Unity |
| Bandwidth (MHz) | 2 |
| Input Impedance (Ohms) | 50 |
| Radiation Pattern | Omni |
| VSWR | 1.5 : 1 |
| RF Power Handling Capacity (Watts) | 500 |
| Input Termination | UHF/N-F |
| MECHANICAL DATA | |
|---|---|
| Materials | All Brass |
| Mounting HW | Stainless Steel |
| Canopy | Nylon |
| Weight (Kgs) | 2.5 |
| Wind Rating (KMPH) | 200 |
| Shipping Length (Meters) | 1.2 |
| Mounting Clamp Size Suitable upto - mm. (Inches) | 51 (2) |
Disclaimer
1. All features, functionality and product specifications are subject to change without prior notice
2. Customized in-band and out-of-band versions are available on request
