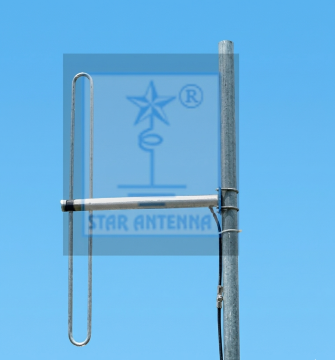

SXD-7503
SXD-7503
The SXD-7503 Dipole Antenna is a robust antenna with low VSWR and high gain covering the entire band from 66-88 MHz. It can be mounted either Vertical or Horizontal polarization wi...
Model
SXD-7503
Frequency
66-88 MHz
Gain
3 dBd. Gain
The SXD-7503 Dipole Antenna is a robust antenna with low VSWR and high gain covering the entire band from 66-88 MHz. It can be mounted either Vertical or Horizontal polarization with the help of supplied stainless steel mounting hardware.
Design & Construction:
The SXD-7503 Stacked Antenna consists of single folded dipole. The antenna maintains constant gain and VSWR over its bandwidth of 5 MHz., making it highly suitable for single or multi-frequency systems. The feed ends and cable connections to the dipoles are sealed in epoxy at the end of the boom for protection against weather and imparting rigidity and strength to the dipole structure.
This Dipole Antenna operates at D.C. ground for protection against lightning and immunity to noise. The dipole is mounted on a tubular boom made of high strength aluminum alloy, which offers a low resistance discharge path. The N-Female antenna termination is fixed at a flying lead of RG-213 RF coaxial cable to ensures complete waterproofing and many years of maintenance free operation.
Technical Specifications
SXD-7503
| ELECTRICAL DATA | |
|---|---|
| Frequency Range (MHz) | 66-88 |
| Gain (dBi) | 3 dBd. |
| Bandwidth (MHz) | 5 |
| Polarization | V or H |
| Input Impedance (Ohms) | 50 |
| Radiation Pattern | Omni |
| Beamwidth 3db (Degrees) | 78 (Vertical) |
| VSWR | 1:1.5 |
| RF Power Handling Capacity (Watts) | 200 Watts |
| Input Termination | N-Female |
| Lightning Protection | Direct Ground |
| MECHANICAL DATA | |
|---|---|
| Materials | All Aluminum |
| Mounting HW | Stainless Steel |
| Wind Rating (KMPH) | 200 |
| Support Pipe Aluminum - O.D. (mm) | Aluminum 38 |
| Dipoles Aluminum - O.D. (mm) | Aluminum 13 |
| Shipping Length (Meters) | 1 x 0.30 |
| Overall Weight Antenna with Mounting - Kg. | 2 |
| Material | Aluminum |
| Dipoles Arms Mounting Clamp | 51 |
Disclaimer
1. All features, functionality and product specifications are subject to change without prior notice
2. Customized in-band and out-of-band versions are available on request
