The SXD-4503 is a rugged antenna with low VSWR and high gain covering the entire band from 330-512 MHz. It is suitable for mounting on top or side of a tower.Design & Construct...
Model
SXD-4503
Frequency
330-512 MHz
Gain
3 dBd. Gain
The SXD-4503 is a rugged antenna with low VSWR and high gain covering the entire band from 330-512 MHz. It is suitable for mounting on top or side of a tower.
Design & Construction:

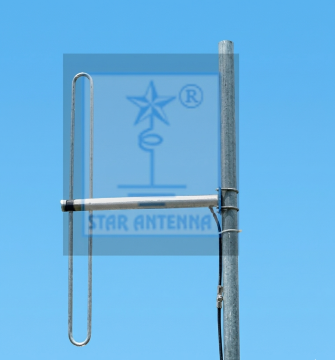

The antenna consists of single folded dipole, vertical polarized. The antenna maintains constant gain and VSWR over its bandwidth of 15 MHz., making it highly suitable for single or multi-frequency systems. All cable connections to the dipole is sealed in epoxy for protection against moisture ingress.
The dipole is mounted on a tabular section made of high strength aluminum alloy which offers a low resistance discharge path. Molded N-Female antenna termination connector ensures complete water proofing.
The antenna can be supplied with or without central mast.
Technical Specifications
SXD-4503
| ELECTRICAL DATA | |
|---|---|
| Frequency Range (MHz) | 330-512 |
| Gain (dBi) | 3 dBd. |
| Bandwidth (MHz) | 15 |
| Polarization | Vertical |
| Input Impedance (Ohms) | 50 |
| Beamwidth 3db (Degrees) | 70 (Vertical) |
| VSWR | 1:1.5 |
| RF Power Handling Capacity (Watts) | 250 |
| Input Termination | N-female |
| MECHANICAL DATA | |
|---|---|
| Mounting HW | Stainless Steel |
| Wind Rating (KMPH) | 220 |
| Support Pipe O.D. (mm) | 50 |
| Overall Weight Antenna with Mounting - Kg. | 4 |
| Support Pipe Length - Feet | 3 |
| Radiating Elements - Material | Aluminum |
| Radiating Elements O.D. - mm. | 12.2 |
Disclaimer
1. All features, functionality and product specifications are subject to change without prior notice
2. Customized in-band and out-of-band versions are available on request
