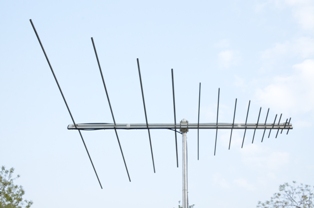

SLP-0301000
SLP-0301000
General:This log periodic dipole antenna is designed to provide wideband directional signal coverage in VHF and UHF bands. Output is provided via one 50 Ohms coaxial in the frequen...
Model
SLP-301000
Frequency
30-1000 MHz
Gain
9 dBi
General:
This log periodic dipole antenna is designed to provide wideband directional signal coverage in VHF and UHF bands. Output is provided via one 50 Ohms coaxial in the frequency range: 30-1000 MHz This log periodic dipole antenna system is suitable for Wide-Band operations, including Monitoring. All the screws, nuts and bolts of log periodic dipole antenna are made of stainless steel. The antenna is designed to operate at D.C. ground.
Technical Specifications
SLP-0301000
| ELECTRICAL DATA | |
|---|---|
| Frequency Range (MHz) | 30-1000 |
| Gain (dBi) | 9 dBi |
| Bandwidth (MHz) | 970 |
| Polarization | Vertical or Horizontal |
| Input Impedance (Ohms) | 50 |
| Radiation Pattern | Directional |
| Beamwidth 3db (Degrees) | 60 |
| VSWR | 1:3 |
| Input Termination | N-Female |
| Lightning Protection | Direct Ground |
| MECHANICAL DATA | |
|---|---|
| Materials | Aluminum |
| Weight Approx (Kgs) | 40 |
| Wind Rating (KMPH) | 160 KMPH |
| Mounting Type | Vertical or Horizontal |
| Overall Length (Meters) | 600 cm Approx. |
| Width (Meters) | 500 cm Approx. |
| Dipoles Arms Mounting Clamp | Galvanized Iron |
Disclaimer
1. All features, functionality and product specifications are subject to change without prior notice
2. Customized in-band and out-of-band versions are available on request
