SLP-0153000
SLP-0153000
General:This log periodic dipole antenna, is designed to provide wideband directional signals from HF through to the UHF band, 3000 MHz.Output is provided via one 50 Ohms coaxial i...
Model
SLP-153000
Frequency
15-3000 MHz
Gain
12 dBi.
General:

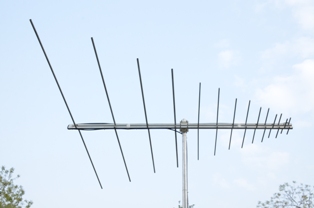

This log periodic dipole antenna, is designed to provide wideband directional signals from HF through to the UHF band, 3000 MHz.
Output is provided via one 50 Ohms coaxial in the frequency range: 15-3000 MHz. This log periodic dipole antenna system is suitable for Wide-Band operations.
The antenna is designed to operate at D.C. ground.
Gain on different Frequencies.
15-40 MHz. : 3 dBi.
40-80 MHz. : 4 dBi.
80-200 MHz. : 7.5 dBi.
200-1000 MHz. : 10 dBi.
1000-3000 MHz. : 12 dBi.
Technical Specifications
SLP-0153000
| ELECTRICAL DATA | |
|---|---|
| Frequency Range (MHz) | 15-3000 |
| Gain (dBi) | 12 dBi. |
| Bandwidth (MHz) | 2985 |
| Polarization | Vertical or Horizontal |
| Input Impedance (Ohms) | 50 |
| Radiation Pattern | Directional |
| Front to Back Ratio | 20 |
| VSWR | 1:1.8 |
| Input Termination | N-Female |
| Lightning Protection | Direct Ground |
| MECHANICAL DATA | |
|---|---|
| Materials | Aluminum |
| Mounting HW | Stainless Steel |
| Weight (Kgs) | 35 |
| Wind Rating (KMPH) | 170 |
| Support Boom - Material - Cross Section - O.D. (mm) | Aluminum Square 37 |
| Overall Length of Each Boom - Meters | 6.20 |
| Maximum Mount Pipe Diameter - mm (Inches) | 52 |
Disclaimer
1. All features, functionality and product specifications are subject to change without prior notice
2. Customized in-band and out-of-band versions are available on request
