SXH-90012
SXH-90012

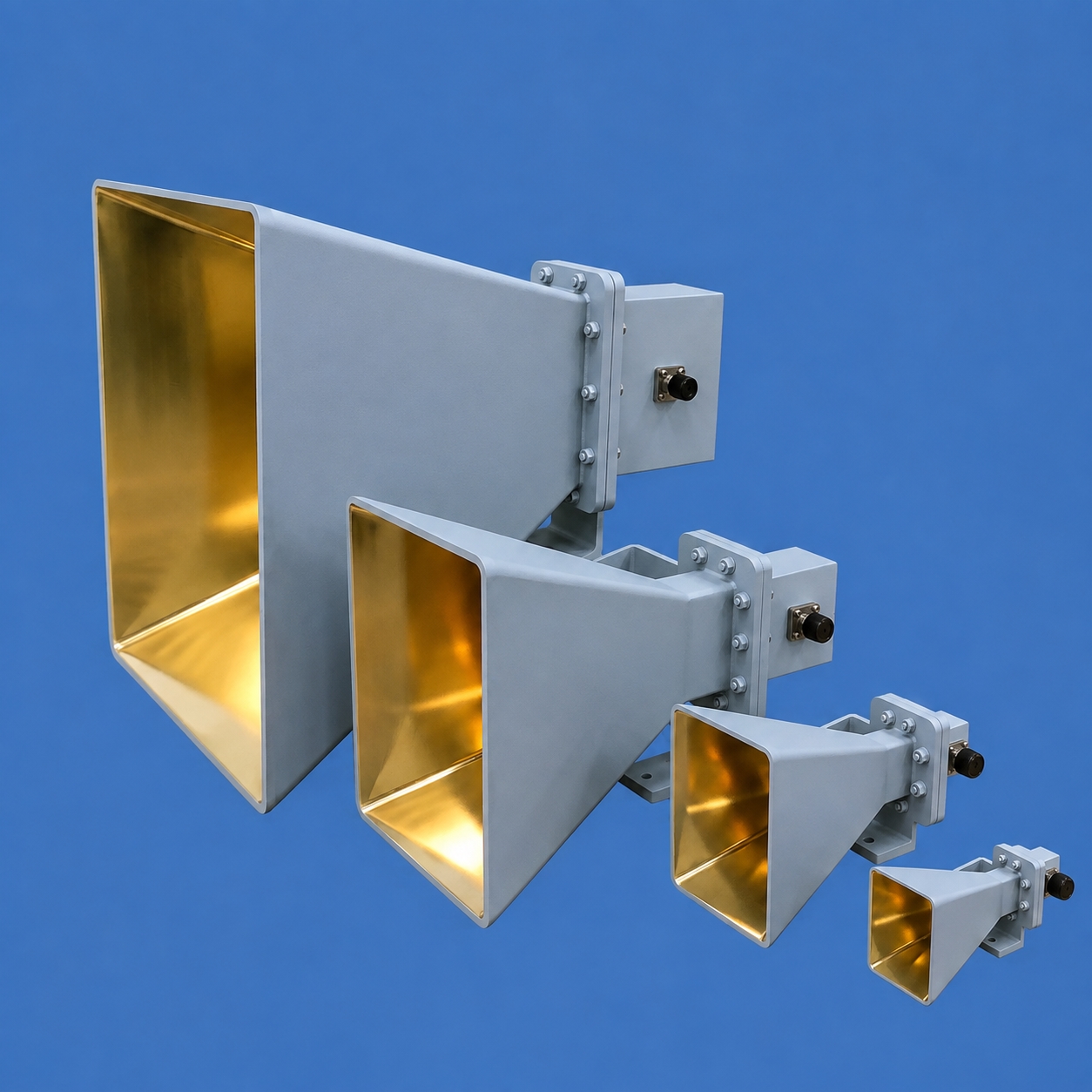

Standard gain Horn antenna for 900 GSM band 700-1300 MHz., manufactured by using top quality aluminium material. The Horn antenna can be used for wide band transmission and recepti...
Model
SXH-90012
Frequency
700-1300 MHz
Gain
9-14 Gain
Standard gain Horn antenna for 900 GSM band 700-1300 MHz., manufactured by using top quality aluminium material. The Horn antenna can be used for wide band transmission and reception. Reference gain graph is depicted with the specification for using the Horn as a standard gain antenna for testing antenna gain. Suitable mounting arrangement is fitted with the horn to change the plane of polarization, V/H, in the field.
Technical Specifications
SXH-90012
| ELECTRICAL DATA | |
|---|---|
| Frequency Range (MHz) | 700-1300 |
| Gain (dBi) | 9-14 |
| Bandwidth (MHz) | 600 |
| Polarization | Vertical |
| Input Impedance (Ohms) | 50 |
| VSWR | 1:1.4 or Better |
| RF Power Handling Capacity (Watts) | 500 |
| Input Termination | N-Female |
| MECHANICAL DATA | |
|---|---|
| Materials | Aluminium |
| Weight (Kgs) | 7 |
| Wind Rating (KMPH) | 200 |
Disclaimer
1. All features, functionality and product specifications are subject to change without prior notice
2. Customized in-band and out-of-band versions are available on request
