The HF Broadband Two Element Folded Dipole Antenna provides optimum performance over complete HF band, eliminating the requirement of multiple antennae or an Antenna Tuning Unit, (...
Model
SXO-2K(2)
Frequency
2 - 30 MHz
Gain
Unity Gain
The HF Broadband Two Element Folded Dipole Antenna provides optimum performance over complete HF band, eliminating the requirement of multiple antennae or an Antenna Tuning Unit, (ATU).
Design & Construction:

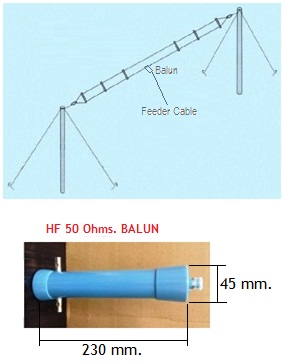

The antenna is designed by using two fold twisted stainless steel rope with a matching Air-cored light weight Balun, weighing less than 500 grams. Length of Balun : 23 Cms., Outer Diameter of Balun : 4.5 Cms. The Balun is supplied with the antenna.
Installation:
HF Broadband Two Element Folded Dipole Antenna can be mounted either in a standard dipole configuration (Horizontal Polarized) using two masts, 30 Meters apart or using a single mast as inverted “V” or slanted on a 6 feet high pole.
Technical Specifications
SXO-2K(2)
| ELECTRICAL DATA | |
|---|---|
| Frequency Range (MHz) | 2 - 30 |
| Gain (dBi) | Unity |
| Bandwidth (MHz) | 28 |
| Polarization | Horizontal or Inverted |
| Input Impedance (Ohms) | 50 |
| VSWR | 1:2.5 |
| RF Power Handling Capacity (Watts) | 250 |
| Input Termination | N-Female |
| Lightning Protection | Direct Ground |
| MECHANICAL DATA | |
|---|---|
| Weight (Kgs) | 3 |
| Wind Rating (KMPH) | 170 |
| Overall Length (Meters) | 27 |
| Dipole Material | Twisted Stainless Steel Rope |
| Spreaders Material | Epoxy Rods |
| Insulator Material | Nylon |
| Recommended Mast Height | 15 Meters (50 Feet) |
| Distance between Mast | 27 Meters |
| Operating Temperature | (-)20 to +50 Degree Celcius |
| Storage Temperature | (-)30 to +60 Degree Celcius |
| Humidity | 0 to 95% RH |
Disclaimer
1. All features, functionality and product specifications are subject to change without prior notice
2. Customized in-band and out-of-band versions are available on request
