SCY-45011
SCY-45011

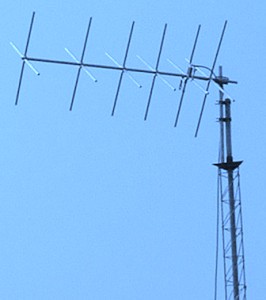

This rugged, all weather Crossed Elements, Yagi Antenna is designed for Circular Polarization. Special mounting hardware is fixed at the centre of the yagi antenna for mounting on...
Model
SCY-45011
Frequency
330-512 MHz
Gain
11 dBi
This rugged, all weather Crossed Elements, Yagi Antenna is designed for Circular Polarization. Special mounting hardware is fixed at the centre of the yagi antenna for mounting on a round pipe of 1-1/2 inch O.D.
The yagi antenna when packed, comes with elements removed from the antenna boom for ease of packing and transportation. It can be assembled at site with use of simple hand tools. The mounting hardware supplied is of Stainless Steel.
Design & Construction:
The yagi antenna uses a GAMMA matching feed, eliminating the use of folded dipole. The antenna termination uses N-Female connector fixed on the antenna dipole.
The 90 degree delay harness cable comes with impedance matched molded joints for low VSWR and require no protection against weather.
When the Antenna is mounted on the mast, the yagi crossed elements make an angle of 45 degrees with respect to horizontal plane.
Polarization Switching:
Yagi antenna can be mounted to work as RCP or LCP selectable by inter-changing the 90 Degrees delay harness cable.
Technical Specifications
SCY-45011
| ELECTRICAL DATA | |
|---|---|
| Frequency Range (MHz) | 330-512 |
| Gain (dBi) | 11 dBi. |
| Bandwidth (MHz) | 10 |
| Polarization | LCP or RCP (Selectable) |
| Input Impedance (Ohms) | 50 |
| Radiation Pattern | Directional |
| Beamwidth 3db (Degrees) | 51 |
| Front to Back Ratio | 18 |
| VSWR | 1:1.5 |
| RF Power Handling Capacity (Watts) | 250 |
| Input Termination | N-Female |
| MECHANICAL DATA | |
|---|---|
| Mounting HW | Stainless Steel |
| Weight (Kgs) | 4 |
| Wind Rating (KMPH) | 170 |
| Overall Length (Meters) | 1.6 |
| Support Boom - Material | Aluminum |
| Support Boom - Cross Section | Round |
| Support Boom - O.D. (mm) | 25 |
| Elements - Material | Aluminum |
| Elements - Cross Section | Round -Tube |
| Elements - O.D. (mm) | 12 |
| Maximum Mount Pipe Diameter - mm (Inches) | 52 (2) |
Disclaimer
1. All features, functionality and product specifications are subject to change without prior notice
2. Customized in-band and out-of-band versions are available on request
